- Injection range 0,2 - 2 % [1:500 – 1:50]
- Water flow range 10 l/h - 3 m3/h
- Operating water pressure 0,3 - 6 bar
- Concentrated additive injection 0,02 - 60 l/h
- Stroke volume ~ 0,53 l
- Connections NPT-BSP 20x27 - 3/4"M

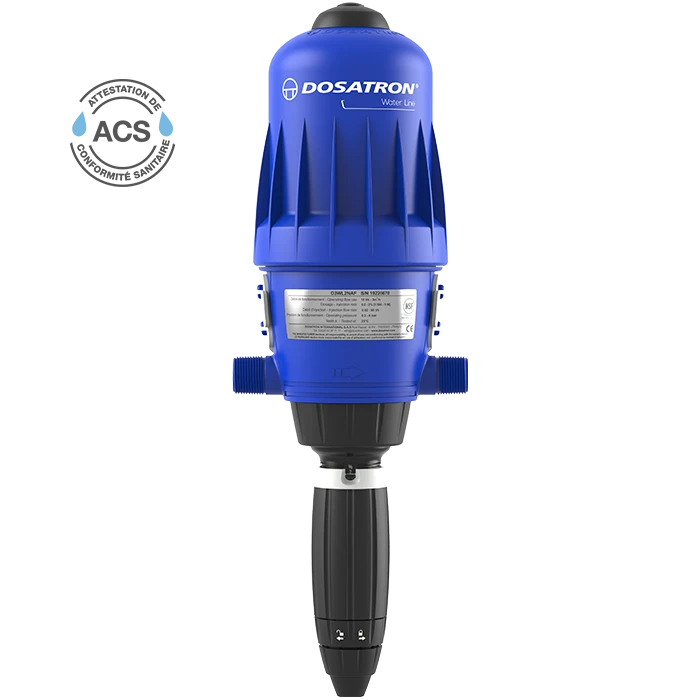

Certified chlorine dosing pump for drinking water
The D3WL-ACS range of chlorine dosing pumps has obtained the mandatory French approval for all equipment in contact with water intended for human consumption. See more.
It meets the dosing requirements for flow rates from 10 to 3,000 l/h.
It is characterized by:
- An optimized design
- A polypropylene pump casing
- Highly ergonomic dosage adjustment
- The availability of micro and macro dosages
- One injection at the exit
- AF seals adapted to alkaline products

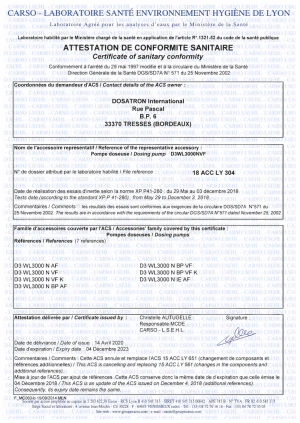

ACS Certification - Drinking Water France
Seals for alkaline additives
(Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
Seals for highly concentrated acids (>15%)
